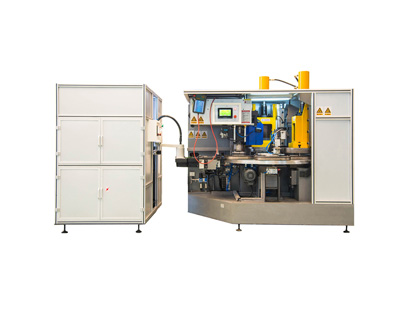

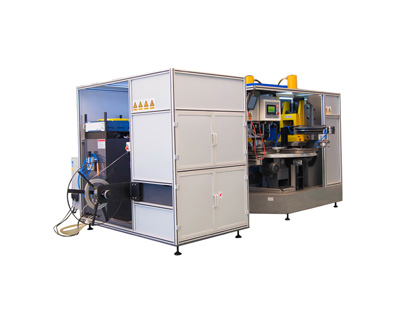

The equipment adopts advanced laser continuous welding technology, through the welding machine fixture feeding - cutting - welding, mechanical arm picking - placing, four-station manipulator holding material - orthopedic - pre-pressing - flattening, forming - unloading, finished product - down material, the overall operation is simple. The touch screen is used to control the operating technical parameters of the equipment. The width of the steel strip can be adjusted arbitrarily without changing the mold. The equipment can realize seamless welding and achieve the best material saving effect.
Input voltage | Enter the frequency | Production speed | Product diameter | Product thickness | Product width | Dimensions |
3*380V | 50HZ | 9~15pcs/min | 63~600mm | <0.8mm | 12~40mm | 5000*2550*2200mm |

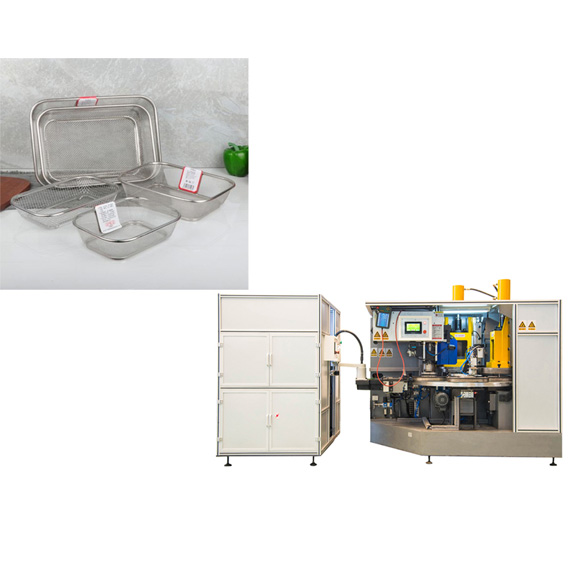

The equipment is mainly used for the welding and forming production of stainless steel ring of mesh basket, and is also suitable for the welding and forming processing of stainless steel ring of oil lattice products. The equipment adopts continuous laser welding technology and four position forming equipment to weld and form baskets or grids of different shapes. The surfaces of all accessories have been blackened, electroplated, oxidized, painted and plastic sprayed to ensure the normal operation of the equipment in a relatively harsh environment.
The equipment is easy to operate, and the touch screen is used to control the operation parameter setting, which can automatically complete the feeding cutting, welding, crimping, forming and unloading processes, greatly saving the labor cost. After welding, the equipment is composed of four position forming equipment, with superior production capacity. The hydraulic oil of the equipment is cooled by compressed refrigerant. Equipment is the best choice for net basket manufacturers.
Mesh Basket stainless steel belt automatic production line Main Characteristics
the mold is customized, which is completely suitable for the processing of the factory's own products.
the equipment is easy to operate, and the parameters can be adjusted through the touch screen.
high production precision, accurate positioning and feeding.
fully automatic production, realizing the integration of welding and forming.
the hydraulic oil of the equipment is cooled by compressed refrigerant.
the equipment is composed of four position forming equipment, with superior products and less labor.
