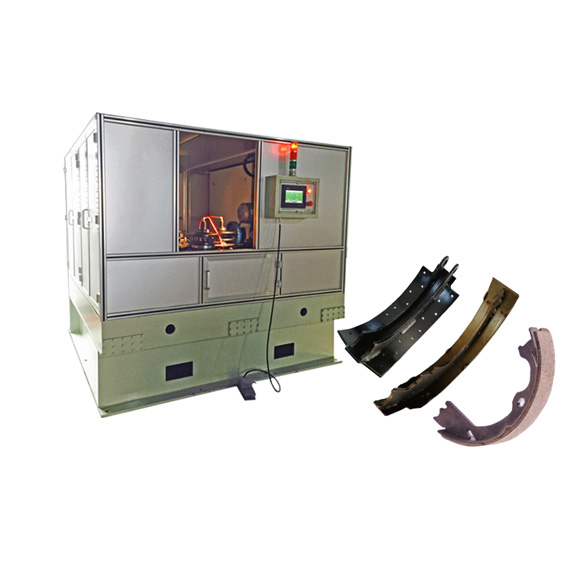

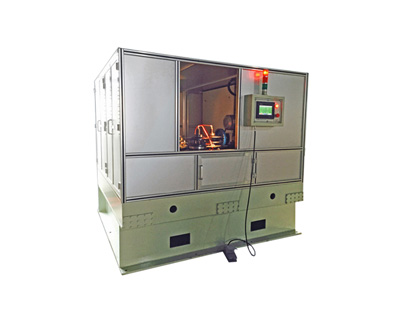

The equipment is grinding equipment for bonding or riveting the outer arc of the brake. The equipment is positioned by a 4-station divider, so that the rotation error of the station is less than 0.03mm. The equipment is equipped with a rough grinding station, a fine grinding station, a dust removal station, External leakage loading and unloading stations, etc., the equipment adopts electrical components of well-known brands to ensure long-term stable operation of the equipment and is reliable equipment for brake manufacturers.
Rated Power | Input voltage | Enter the frequency | Product diameter | Panel width | Number of stations | Enter air pressure | Dimensions |
2*1.1KVA | 3*380V | 50HZ | Φ150mm | <120mm | 4 | 0.5-0.7Mpa | 2000*1800*1800mm |
The equipment is mainly used in the outer arc grinding process of automobile brake shoes, especially the outer arc grinding work of bonding or riveting brakes. The equipment adopts a fully sealed design, which reduces the damage of dust to the human body. The ground brake shoes have beautiful appearance and high quality. And all the electrical components of the equipment use well-known brands to ensure long-term stable operation of the equipment.
The rough grinding station and fine grinding station of the equipment are respectively equipped with diamond grinding wheels, and the dust removal station is equipped with brushes, which are convenient and durable. At the same time, the equipment adopts a pneumatic clamping device, which is very convenient for loading and unloading products. We are equipped with 4 sets of molds for one equipment, which provides customers with quality assurance.
Four position grinding machine for automobile brake shoe Main Characteristics
The equipment is equipped with four stations including rough grinding, fine grinding, dust removal, and external leakage loading and unloading.
Pneumatic clamping, convenient for loading and unloading products.
The four-position divider is used for positioning, and the rotation error is small.
The rough grinding and fine grinding stations are equipped with diamond grinding wheels respectively.
Electrical components adopt international famous brands.
All fasteners reach the national standard 12.9.
