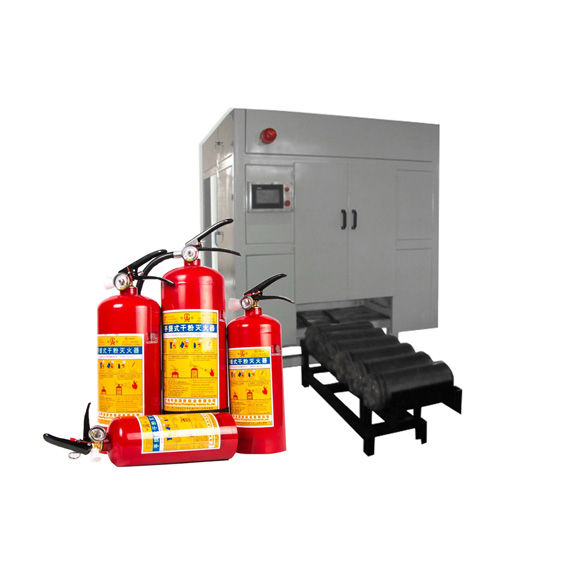

The equipment is fully automated, combined with the characteristics of fire extinguisher cylinder production, automatic feeding, positioning, correction, alignment, welding, and unloading, which reduce the labor intensity of operators and improve work efficiency. The front of the equipment is designed with a cover, which effectively avoids the harsh, dusty, high temperature, and strong ultraviolet working environment, and reduces the damage to the operator's body during work.
Project | Torch handle number | Input voltage | Enter the frequency | Product diameter | Product height | Gas welding machine | Enter air pressure | Water temperature | Dimensions |
JSH-B-M2 | 2 | 3*380V | 50HZ | Φ60-180mm | <400mm | 2 | 0.5-0.7Mpa | 10-15℃ | 1900*1900*1800mm |
JSH-B-M3 | 3 | 3*380V | 50HZ | Φ60-180mm | <400mm | 3 | 0.5-0.7Mpa | 10-15℃ | 1900*1900*1800mm |

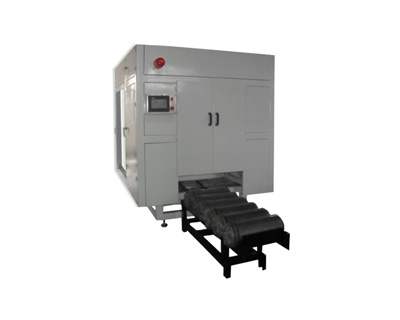

The equipment is a special equipment for welding the bottom and top of the fire extinguisher. During the welding process, the operator only needs to be responsible for assembling the semi-finished fire extinguisher cylinders on the designated material rack, and arrange them in the required order. After the products are welded, they will be automatically unloaded to the finished product landing frame. The whole process is simple to operate, the equipment is small, the site space is saved, and it is easy to realize a fully automated production line.
The welding speed of the equipment is fast. In the state of no alarm and material shortage, taking a 180mm outer diameter steel cylinder as an example, an average of 55 fire extinguisher cylinders can be welded per hour. The welding part of the equipment consists of three stations, namely the clamping station, the bottle bottom welding station, and the bottle mouth welding station. The equipment is easy to operate, which greatly improves the production efficiency.

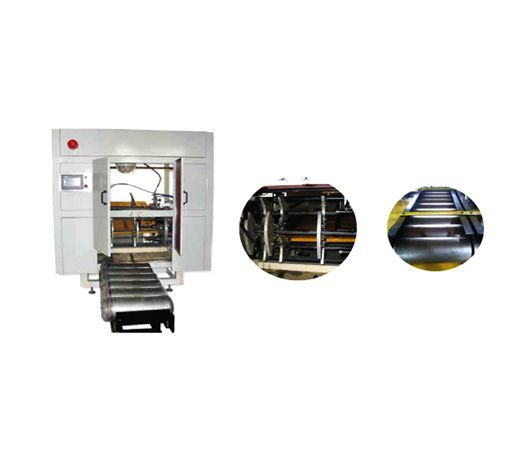

Fire extinguisher seam welder Main Characteristics
Automatic production, the operator only needs to place the material.
High efficiency, High efficiency, 180mm diameter cylinder can weld 55 products per hour.
The sealing design reduces the environmental damage to the operator's body.
The operation is simple, and the operator can complete it according to the operation instructions.
Detection function, the equipment has no material detection function, and the cylinder hanging climbing and the bottle mouth alignment have an automatic detection function.
The equipment is small in size, which greatly saves site space and can be connected with automated production lines.
