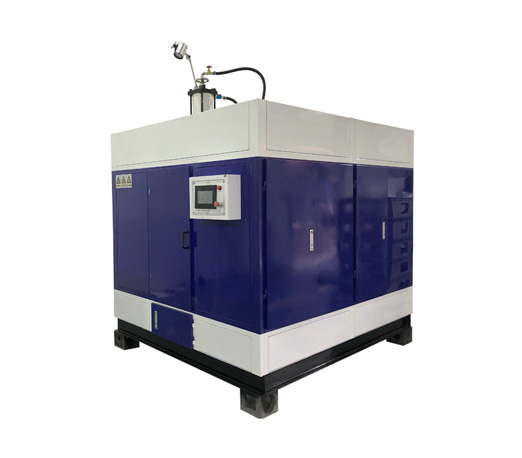

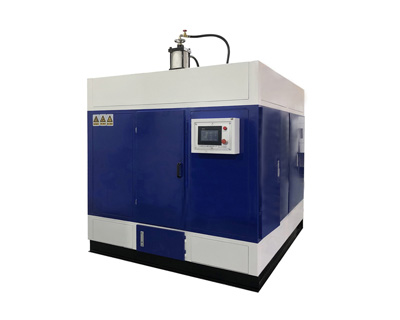

The equipment is mainly suitable for plug welding of the positioning hole formed by the double rib arc plate and the rib plate of the automobile brake assembly. It adopts a fully enclosed overall design, with beautiful appearance and easy maintenance. The equipment is designed with an exhaust port, and the interface with the exhaust duct or the welding machine fume treatment interface can be connected to the user's exhaust equipment.
Rated power | Input voltage | Enter the frequency | Product diameter | Panel width | Gas welding machie | Number of welds | Cooling water pressure | Water temperature | Dimensions |
40KVA | 3*380V | 50HZ | Φ300-400mm | <230mm | 2 | <6 | 3.0kgf/cm | 10-15℃ | 1900*1650*1900mm |

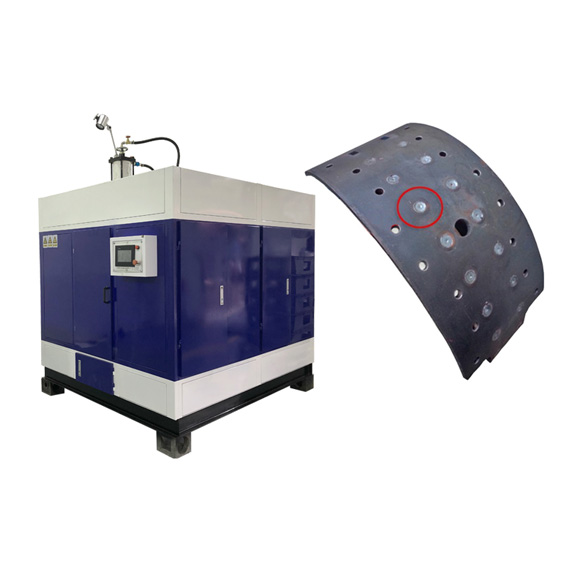

The equipment is mainly used in the welding of the double rib arc plate of the brake shoe assembly of heavy-duty vehicles, and is a special equipment for plug welding of positioning holes. The equipment is equipped with a brand gas shielded welding machine, and the welding shape is beautiful. The equipment mold is light in weight and low in manufacturing cost, and the mold can be manually loaded and unloaded without a crane. The clamping, displacement, welding and unloading of the equipment are all completed automatically, and the optimized program design makes the connection of each step smoother and the welding efficiency higher.

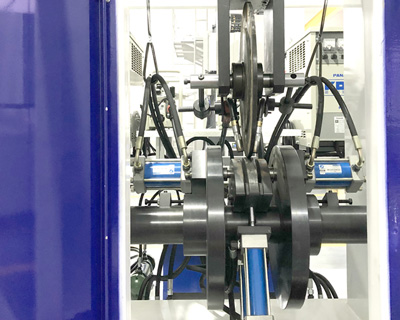

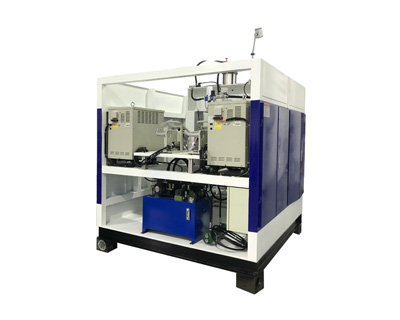

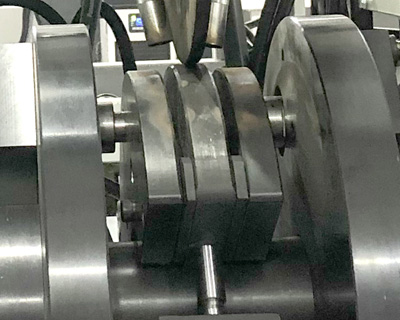

The equipment adopts hydraulic clamping of the workpiece, and the fixture adopts a special design, which can effectively control the welding deformation on the premise of ensuring the welding quality. The control system adopts PLC and color touch screen control. The Chinese and English operation interface can make the operation simple and intuitive. The welding current, voltage, welding time, idle stroke speed, angle difference of welding points and spot welding parameters are all digital devices. Convenient.
Double rib brake shoe plug welding machine Main Characteristics
The workpiece is clamped by hydraulic pressure, which can ensure the welding quality.
The equipment is equipped with a brand gas shielded welding machine, and the welding shape is beautiful.
The control system adopts PLC and color touch screen, which is convenient for operation.
The rotation of the workpiece is driven by a servo motor, and the positioning is accurate and reliable.
Humanized design of equipment. Easy to understand, easy to learn, easy to operate.
The fully enclosed design of the equipment is safe, environmentally friendly and easy to maintain.
