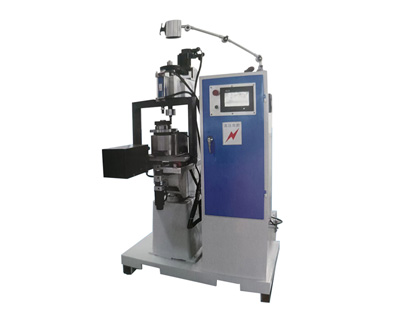

The equipment is a CNC milling machine developed and produced for the milling processing of the forklift brake base plate boss. The equipment can realize automatic rotation, avoid the milling cutter, and quickly stop and start the spindle. And can save 10 groups of programs to call at will. It adopts color touch screen parameter control design, and the workpiece pressing method adopts hydraulic cylinder and manual valve control, which has the advantages of simple and labor-saving loading and unloading of workpieces.
Rated total power | Input voltage | Enter the frequency | Clamping method | Product diameter | Milling cutter diameter | Hydraulic power | Milling power | Milling speed | Dimensions |
6KW | 3*380V | 50HZ | Hydraulic | <φ380mm | Φ18mm | 2.2KW | 2KW | 3000rpm | 2000*1700*1900mm |
The equipment can realize the characteristics of automatic rotation, avoidance of milling cutters, and quick stop and start of the spindle. At the same time, the equipment can save 10 groups of programs for users to call at will. It adopts Delta PLC, color touch screen and servo motor control. Parameters can be set by trial correction, making it easy for operators to learn and operate.

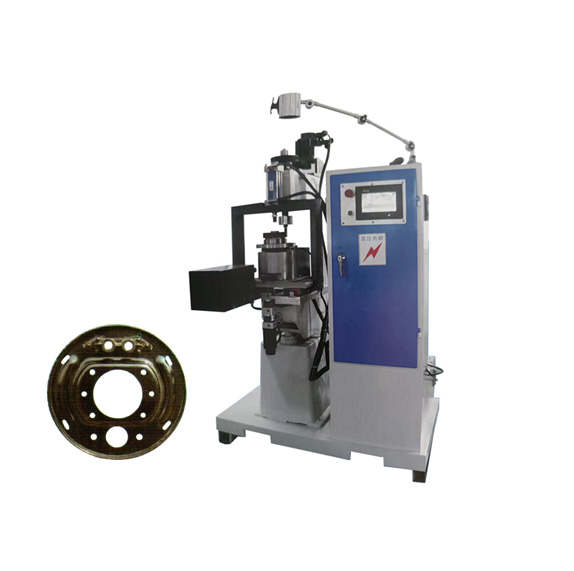

The equipment is mainly used for milling the boss of the brake base plate of forklift truck. The workpiece pressing mode adopts hydraulic oil cylinder and manual valve control, so that the equipment has the advantages of simple and labor-saving workpiece loading and unloading. At the same time, all fasteners of the equipment meet the national standard level 12.9, and the rack is made of high-strength steel plate, which effectively keeps the equipment running normally for a long time.
Automobile brake disc milling machine Main Characteristics
Realize automatic rotation, avoid milling cutter, and quickly stop and start the spindle.
10 groups of programs can be saved and called at will.
Adopt brand electrical components and touch screen to set parameters.
Hydraulic cylinder pressing method, easy to load and unload workpiece.
The operator is easy to learn, easy to operate, labor-saving and so on.
Fasteners meet the national standard 12.9.
