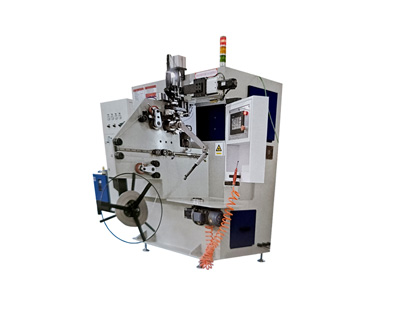

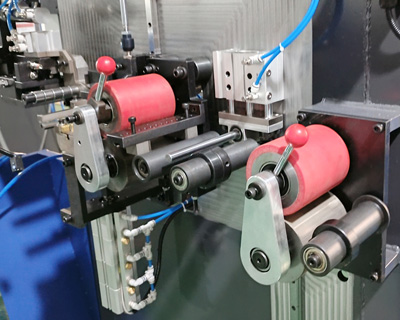

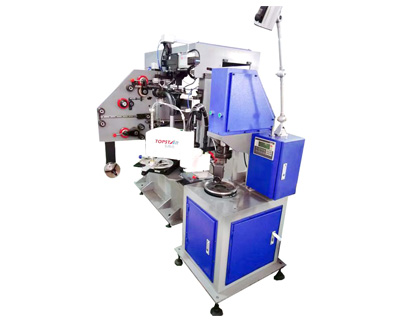

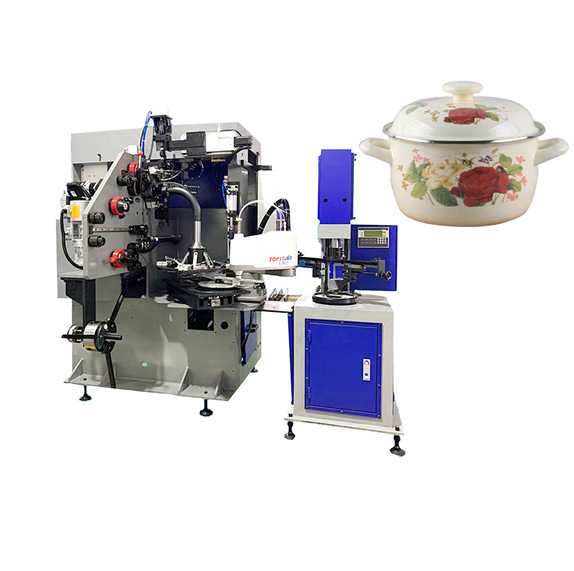

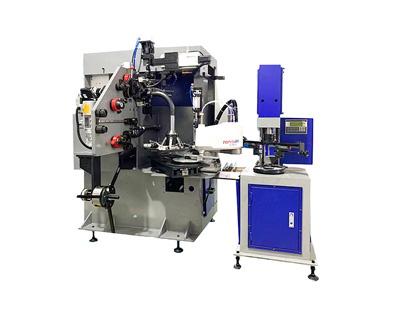

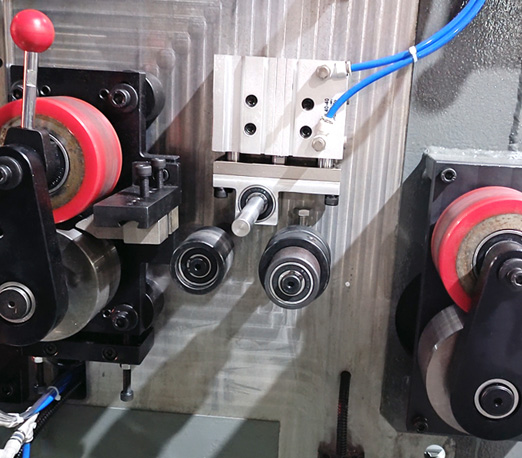

The automatic enamel pot stainless steel belt welding and forming production line is a professional equipment specially built for enamel pot manufacturers. The equipment is designed for continuous laser welding of the C type stainless steel ring of the enamel pot. After welding, it is grasped by a mechanical arm, and then automatically rolled Machine hemming and unloading. So as to achieve the automatic production of welding and forming.
Rated total power | Input voltage | Enter the frequency | Product diameter | Product thickness | Product width | Dimensions |
25KW | 3*380V | 50HZ | 120~400mm | <0.2mm | 8~18mm | 2000*1800*2000mm |
The equipment is mainly used in the automatic production of welding and forming of C-type small circles such as enamel pots. According to the characteristics of the C-type stainless steel ring is relatively narrow in width and not thick, it is a customized automatic production line. The welding speed is very fast, and the welding seam is free of burrs, and the desoldering rate is less than 0.1%.
The equipment occupies a small area and is very suitable for enamel pot manufacturers. The equipment adopts the most advanced continuous laser welding technology at present. The welds of stainless steel strip are smooth and flat, and the desoldering rate is very low. After years of optimization and upgrading, the equipment has very stable operability. The use of mechanical arm saves the problem of workers getting on and off the workpiece. So as to achieve the most ideal cost state.
Automatic production line of stainless steel belt for enamel pot cover Main Characteristics
The operation is simple and fully numerically controlled, and every worker can operate the equipment after learning.
Arbitrary adjustment, the equipment is controlled by the program, and the welding size can be adjusted arbitrarily.
High efficiency, high-precision servo system is used to start various processing steps at high speed.
High-quality, laser continuous welding makes the welds meet the highest requirements.
High energy saving, the equipment has the alarm system of no material and material jam, and the function of automatic shutdown.
Low cost, the equipment combines multiple processes to complete, which completely solves the labor problem.
